10 Color Digital BAR Oil Pressure Gauge

SKU:
GS-TCD04-Bar
$114.99

UPC:
842559130308
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Extended Holiday Returns

    Extended Holiday ReturnsACCEPTED UNTIL JANUARY 31ST

  • Delivery By Christmas

    Delivery By ChristmasCONTIGUOUS US ONLY

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

GlowShift 10 Color Digital Series BAR Oil Pressure Gauges are electronically driven and read your engine’s oil pressure levels from 0 to 10.0 BAR with unrivaled accuracy on an ultra-bright digital LED display. Essential for virtually any car or truck, a digital oil pressure gauge monitors and displays oil pressure levels to ensure the bearings, crankshaft and other critical engine parts stay properly lubricated. This BAR oil pressure gauge kit comes with an Electronic Oil Pressure Sensor, 9' Sensor Harness and more for installation.

10 Color Digital Series 10 Color Digital Series

The 10 Color Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Set the display to one of 10 available colors. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

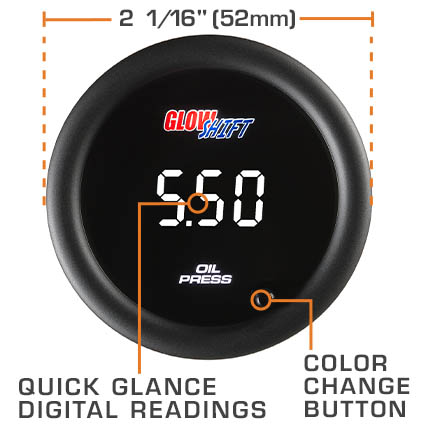

Features

10 Color Digital Series Features

10 Color Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 Color Options

10 Color Digital Series Color Options

The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

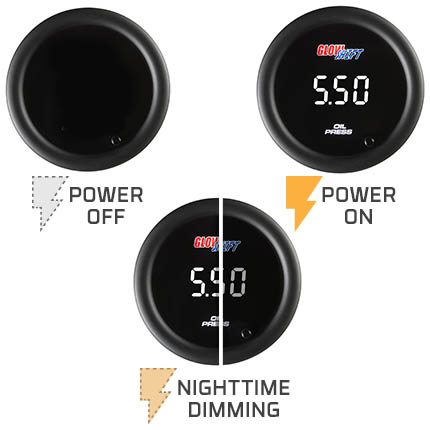

Backlighting

10 Color Digital Series Backlighting

LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

What's Included

  • 2-1/16” (52mm) Digital Bar Oil Pressure Gauge
  • 1/8-27 NPT Electronic Oil Pressure Sensor
  • 9’ Pressure Sensor Harness
  • 2’ Power Harness
  • Gauge Visor
  • Mounting Bracket
  • Mounting Bracket Hardware
  • Installation Instructions

Sensor

10 Color Digital Oil Pressure Sensor

This car and truck oil pressure gauge comes with a 1/8-27 NPT Electronic Oil Pressure Sensor. The sensor can be installed by using several different methods including the vehicle’s Oil Gallery Test Port, an Oil Filter Adapter or by using a T-Fitting. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation.

Wiring

10 Color Digital Oil Pressure Wiring

A 2’ Power Harness and 9’ Pressure Sensor Harness are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

Mounting Bracket

10 Color Digital Oil Pressure Mounting Hardware

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.

Tech Specs
Gauge Series: 10 Color Digital Series
Brand: GlowShift
Gauge Type: Oil Pressure
Range of Reading: 0.0 - 10.0 BAR
Face Color: Black
Size: 52mm
Lens: Tinted
Backlighting Color: 10 Colors
Sending Unit: Electronic
Measurement Unit: Metric
Display: Digital
Instructions

Includes an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift products.

Download and Print the PDF PDF Instructions View Our Help Center Help Center
