3in1 Series Single Gauge Package for 1999-2007 Ford Super Duty Power Stroke

Give yourself the monitoring power of three different gauges combined into one with GlowShift’s 3in1 Diesel Combo Gauge Series for any 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with a 6.0L or 7.3L Power Stroke engine. Choose between seven different 2-3/8” (60mm) combination gauges which feature simultaneous analog and digital displays. Each gauge also comes equipped with all required sensors as well as sensor wiring for installation. As part of this gauge package you’ll have the choice of either a black, factory color matched gray, or factory color matched tan single pillar pod. This 60mm pillar gauge pod will provide you with the convenience of quick-glance readings from the Power Stroke’s factory A-pillar, and you won’t lose the grab handle on model years 2003-2007.

Gauge Series Details

GlowShift’s 3in1 Gauge Series comes standard with a cutting-edge design that includes your choice of either a black or white gauge face and magnified clear lens. The illuminated red needle sweeps 270° and is powered by stepper motor technology, giving you an effective combination of incredibly accurate gauge readings with extremely smooth needle movement. GlowShift’s 10 Color through dial LED lighting system allows you to select and change the color of the analog display by simply pressing the button located along the front of the gauge. The 10 ultra-bright LED solid color modes include: Blue, Green, Red, Teal, Yellow, Purple, Pink, Amber, Orange and White. Easily cycle through the 10 Solid Color Settings and 2 Color Cycle Modes that utilize all of these powerful LED colors.

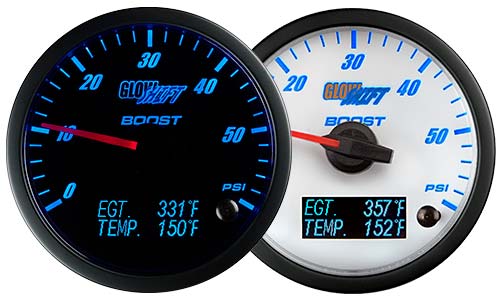

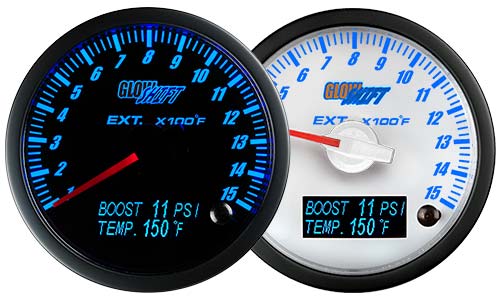

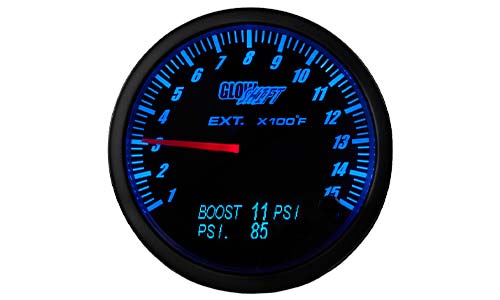

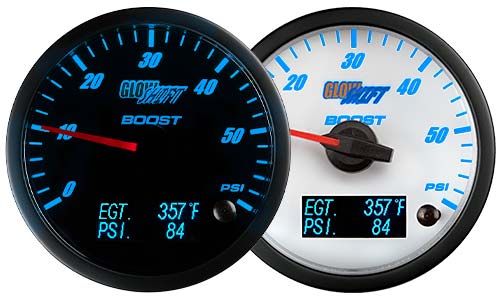

An ultra-bright analog display with an illuminated red needle delivers extremely accurate readings for the primary gauge application that you select. A bright blue digital display provides simultaneous readings on the second and third applications that you select for your gauge. Choose between either a black or white gauge face, depending on which style you prefer for your gauge as well as the available LED color options. Equipped with a clear magnified lens that showcases the bright display, this gauge will provide you with sharp, clear and easily accessible readings.

Using the hardware provided, the included single pillar gauge pod is an overlay which is mounted to the factory A-pillar, utilizing a strategic position for your gauge. The included pod is a partial pillar mount gauge pod which only covers a smaller portion of the factory A-pillar as opposed to the entire length. The installation process is easy and can be completed with a few steps since the pod is an overlay and takes up only part of the factory A-pillar. This single pillar gauge pod is custom made for your truck, giving it a factory look along with providing a professional fit and finish.

This gauge pod was specifically designed to hold one of GlowShift’s 2-3/8” (60mm) 3in1 Gauges. Choose between a black, factory color matched tan, or factory color matched gray pillar pod. Keep the factory grab handle with the A-pillar grab handle cutout that’s included for 2003-2007 Models. This pod is made from extremely durable ABS plastic, making it strong and built to last.

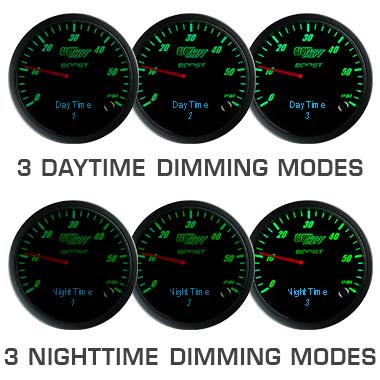

Daytime and Nighttime Dimming Modes are available for the brightness level of your gauge. 3 brightness settings are available for each to get just the right amount of lighting. Continue to easily view readings and experience this gauge’s powerful LED display. With built-in color recall capability, the gauge will display the last color setting in use.

Customize the analog display with GlowShift’s 10 Color LED Through Dial Lighting feature. Easily scan the 10 Solid Color Settings to match your factory dash or create a unique look. Choose between Blue, Red, Green, Teal, Purple, White, Yellow, Pink, Amber and Orange. Two Color Cycle Modes are also available which navigate all featured color options.

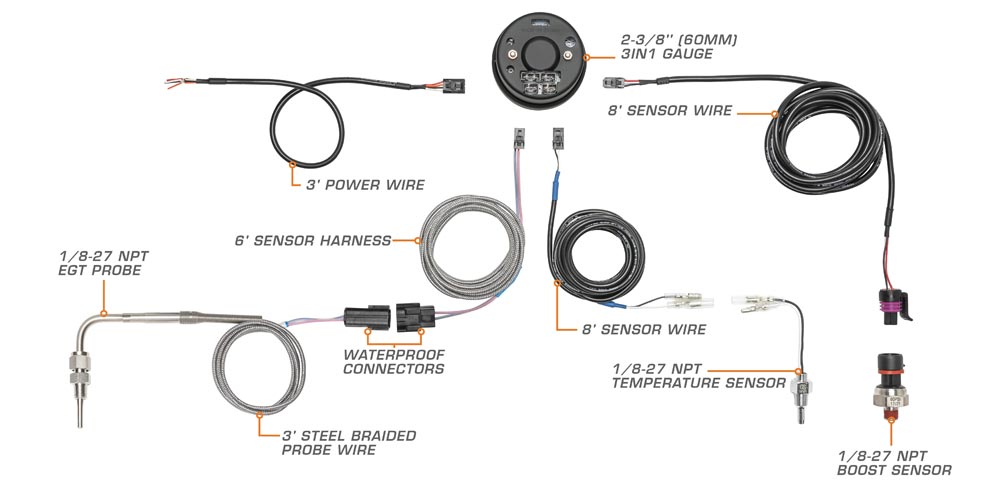

Sensor & Wiring Layout

All wiring required for the installation of GlowShift’s 3in1 Gauges is provided with this gauge package, and only a few straightforward steps are involved in making each of the connections. The power wire and sensor wires feature modular connectors that easily snap into the back of the gauge, ensuring the connections are completely secure. The EGT and Temperature sensor wires also feature waterproof connectors for those respective sensor connections. With the extended wiring lengths you’ll also have additional flexibility during the install. All mounting and installation hardware is also included with each gauge. GlowShift provides installation instructions and free lifetime tech support to help with any questions you might have along the way.

Fitment Details

All gauges, pods, sensors, adapters and optional accessories that are available with this gauge package were designed to work with any 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 featuring a 6.0L or 7.3L Power Stroke engine. Fits: 99, 00, 01, 02, 03, 04, 05, 06, 07 Ford Super Duty, F-250, F-350.

1/8-27 NPT Drill & Tap Set Used for Installing EGT Probe, Boost Fittings or Boost Sensor Drill & Tap Exhaust or Intake Manifold to 1/8-27 NPT Includes Size R Drill Bit & 1/8 NPT Tap	MAP Line T-Fitting Adapter Quick & Easy Install of Boost Hose or Sensor into the 3/16” MAP Line Cut the Line, Insert the T-Fitting & Secure with Included Clamps Avoid Drilling & Tapping the Intake Manifold Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999-2002 Ford 7.3L Power Stroke Fits 2003-2007 Ford 6.0L Power Stroke	Air Intake Heater Boost Plug Adapter Quick & Easy Install of Boost Hose or Sensor to the Air Intake Remove the Restrictive Heater Plug & Thread Adapter in its Place No Drilling or Tapping Required Female 1/8-27 NPT Thread for Fittings/Sensor Fits 1999.5-2002 Ford Super Duty 7.3L Power Stroke Fits 2001-2004 GM 6.6L Duramax	Fuel Pressure Adapter for Ford 7.3L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 1999-2002 Ford 7.3L Power Stroke
Fuel Pressure Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Fuel Pressure Sensor to Fuel Filter Housing No Need to Cut Factory Fuel Lines Replaces Pressure Port Fitting Features O-Ring for Leak-Free Seal Female 1/8-27 NPT Thread for Sensor Fits 2003-2007 Ford 6.0L Power Stroke	1/2” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	3/8” Transmission Cooler Line T-Fitting Adapter Allows Installation of Temperature Sensor to the 3/8” Transmission Cooler Line Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal Female 1/8-27 NPT Thread on T-Fitting for Sensor	Water Temp Adapter for Ford 6.0L Power Stroke Quick & Easy Install of Water Temp Sensor to the Engine Block Remove the Block Off Plug & Thread in the Adapter No Major Modifications Required Female 1/8-27 NPT Thread for Temp Sensor Fits 2003-2007 Ford 6.0L Power Stroke
Expandable Circuit Quick & Easy Way to Power Gauges Directly from the Fuse Panel Used for Constant & Switched 12 Volt Power for Gauges Includes 4 Amp Fuse for Circuit Protection

Installation Guides

This 3in1 Series Gauge Package comes with product instructions that provide complete details on how to install your gauges and pod for the 1999-2007 Ford Super Duty Power Stroke F-250 and F-350 with either a 6.0L or 7.3L Power Stroke engine. You can also visit our set of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of GlowShift gauges, pods and more.

Watch the 7.3L Installation Video

Watch the 6.0L Installation Video

Download and Print the PDF
